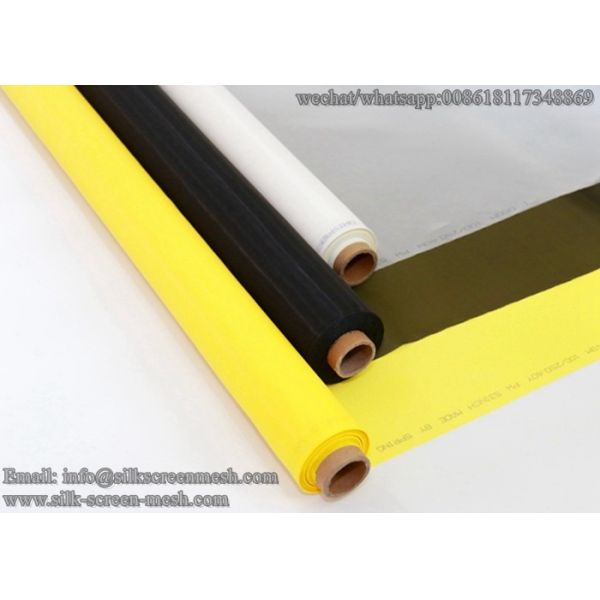

Auto Glass Printing Mesh Material China Supplier 80T 165cm Polyester Silk Printing Screen Mesh
Screen printing is a basic auto glass decorative techniques, such as the former block, the side window and rear window glass, heat wire design, antenna (radio, global positioning system (GPS) and skylight used black membrane.With good stability of longitude screen mesh is most suitable for printing black film and sunshades etc.
Advantages:· Faster Tensioning without damage to the threads ,Improved fabric strength, Faster Tension Stabilization,Higher Tension threshold and breaking point. Less tension loss during the stretching process, Faster turnaround time from the screen room to the press room. Improved registration due to stable tension, Faster print speed.
Characteristics:
The better durability of screen life and stretchability.
Higher tension levels.
Faster tension stabilization.
Precision bore, well-distributed, stabilization, superior stencil adhesion.
Good ink and paste release behavior.
Time-dependent stability and good cohesion with sensitive emulsion.
Increased resistance to abrasion and harsh reclaiming chemicals.
| Mesh Selecting for Screen Printing |
| Graphics | 165T/420-31;150T/380-31;140T/355-31;120T/300-34;90T/230-48;32T/83-70 |
| Backlit panels | 165T/420-31;150T/380-31;140T/355-31;120T/300-34;90T/230-48 |
| CD/DVD | 165T/420-31;150T/380-31;140T/355-31;120T/300-34 |
| Electronics/PCB | 165T/420-31;150T/380-31;140T/355-31;120T/300-34;100T/255-40;90T/230-48;77T/195-55; |
| 71T/180-55;68T/175-55;62T/160-64;54T/137-64;48T/123-70;43T/110-80;32T/83-70;12T/30-150 |
| Membrane Switches | 165T/420-31;150T/380-31;140T/355-31;120T/300-34;110T/280-34um;100T/255-40;90T/230-48; |
| 77T/195-55;71T/180-55;48T/123-70;36T/90-100 |
| Credit Cards | 150T/380-31;120T/300-34;100T/255-34;71T/180-55 |
| Dashboards | 165T/420-31;150T/380-31;140T/355-31;120T/300-34;110T/280-34um;90T/230-48;36T/90-100 |
| Ceramic Tiles | 165T/420-31;150T/380-31;140T/355-31;120T/300-34;100T/255-40;77T/195-55;62T/160-64; |
| 43T/110-80;36T/90-100;32T/83-100;12T/30-150 |
| Glass | 165T/420-31;150T/380-31;140T/355-31;120T/300-34;100T/255-40;90T/230-48;77T/195-48; |
| 62T/160-64;68T/175-55;43T/110-80; |
| Textiles | 150T/380-31;140T/355-31;120T/300-34;100T/255-40;77T/195-48;62T/160-64;54T/137-64; |
| 47T/120-55;43T/110-80;40T/100-80;36T/90-100;32T/83-100;16T/40-200;12T/30-150 |
| Objects | 165T/420-31;150T/380-31;140T/355-31;120T/300-34;100T/255-40 |
