Place of Origin : Shanghai China
Brand Name : SPRING
Certification : ISO19001, ISO14001
Model Number : GG, PDM, MF
MOQ : 30m
Packaging Details : Paper tube, plastic bag, carton box, sailcloth
Delivery Time : 3-5 Days
Payment Terms : TT/LC/Western Union/paypal/others
Supply Ability : 50000000m/month
Price : www.springscreenmesh.com
Mesh Opening : 63-2000um
MOQ : 30/50meters
Standard : SGS
Hole Shape : Square
Thread Diameter : 43-550um
Export Markets : Global
Light Weight Sifting Screen Mesh Smooth Surface Excellent Tear Resistance
PA Milling Mesh, PA Seris of Bolting Cloth, PA Flour Mesh Specifications:
1) Material: 100% nylon (polyester available if needed)
2) Weaving: Plain weave (Twill weave available if needed)
3) 6XXX-17XXX; 10GG-74GG
4) Max. Width: 365cm (143 inch)
5) Color: White
6) PDM Seris: 3PDM-25PDM
7) PA Seris: PA3-PA25
8) MF Seris: 3MF-17MF
We can provide products in special specifications according to your demand.
PA Milling Mesh, PA Seris of Bolting Cloth, PA Flour Mesh Features & advantages:
* Well and High Quality Control
* Environment FriendlyProducts
* Safety/Quality Approvals
* SGS, PDA, ISO9001:2008
* Best Prices
PA Milling Mesh, PA Seris of Bolting Cloth, PA Flour Mesh Application:
XX Series: For soft wheat and rye
XXX Series: For medium to hard wheat and high capacity sifters
GG Series: Mainly used for gritting gauze for coarse and scalping sieves.
Flour Mesh Sieve as one of our mainly products, it is widely used for flour milling machine make a process of grinding and separating, done by roller-mills, sifters and purifiers. Such as flour, com, grain sifter, etc.
Food grade Nylon flour filter mesh used for coarse screen features
Food grade
Alkali resistance
High strength and Tear resistant
Unique wire diameter and standard opening size
Nylon has excellent resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical pH range 7-1.
Food grade Nylon flour filter mesh used for coarse screen application:
Nylon Filter Mesh Fabric is suitable for fine filtering of liquid and food processing ,food protection,water strain ,art and design,modelling,photogrophy and insect gardening net.Flour ,Corn,Grain and flour miling.


| Spec. | Mesh/inch | Mesh/cm | Wire Dia.(um) | Mesh Opening | Opening Area |
| 10GG | 10.0 | 3.9 | 550 | 2000 | 61.5 |
| 12GG | 11.3 | 4.4 | 450 | 1800 | 64.0 |
| 14GG | 12.7 | 5.0 | 400 | 1600 | 64.0 |
| 15GG | 14.1 | 5.6 | 400 | 1400 | 60.5 |
| 16GG | 15.4 | 6.1 | 350 | 1300 | 62.1 |
| 18GG | 16.5 | 6.5 | 350 | 1188 | 59.7 |
| 19GG | 17.8 | 7.0 | 350 | 1080 | 57.0 |
| 20GG | 19.5 | 7.7 | 300 | 1000 | 59.2 |
| 22GG | 20.3 | 8.0 | 300 | 950 | 57.8 |
| 24GG | 22.1 | 8.7 | 300 | 850 | 54.6 |
| 26GG | 23.1 | 9.1 | 300 | 800 | 52.9 |
| 27GG | 25.4 | 10.0 | 250 | 750 | 56.3 |
| 28GG | 26.5 | 10.4 | 250 | 710 | 54.7 |
| 30GG | 27.6 | 10.9 | 250 | 670 | 53.0 |
| 31GG | 29.5 | 11.6 | 250 | 610 | 50.3 |
| 32GG | 29.9 | 11.8 | 250 | 600 | 49.8 |
| 34GG | 32.6 | 12.8 | 220 | 560 | 51.5 |
| 36GG | 33.9 | 13.3 | 220 | 530 | 49.9 |
| 38GG | 35.3 | 13.9 | 220 | 500 | 48.2 |
| 40GG | 37.6 | 14.8 | 200 | 475 | 49.5 |
| 42GG | 39.1 | 15.4 | 200 | 450 | 47.9 |
| 44GG | 40.6 | 16.0 | 200 | 425 | 46.2 |
| 45GG | 43.8 | 17.2 | 180 | 400 | 47.6 |
| 47GG | 45.8 | 18.0 | 180 | 375 | 45.7 |
| 50GG | 50.3 | 19.8 | 150 | 355 | 49.4 |
| 52GG | 52.4 | 20.6 | 150 | 335 | 47.7 |
| 54GG | 54.6 | 21.5 | 150 | 315 | 45.9 |
| 56GG | 55.5 | 21.8 | 150 | 308 | 45.2 |
| 58GG | 56.4 | 22.2 | 150 | 300 | 44.4 |
| 60GG | 59.1 | 23.3 | 150 | 280 | 42.4 |
| 62GG | 59.8 | 23.5 | 150 | 275 | 41.9 |
| 64GG | 61.2 | 24.1 | 150 | 265 | 40.8 |
| 66GG | 68.6 | 27.0 | 120 | 250 | 45.7 |
| 68GG | 70.0 | 27.5 | 120 | 243 | 44.8 |
| 70GG | 71.3 | 28.1 | 120 | 236 | 43.9 |
| 72GG | 73.8 | 29.1 | 120 | 224 | 42.4 |
| 74GG | 76.5 | 30.1 | 120 | 212 | 40.8 |
| 6xxx | 76.2 | 30 | 120 | 213 | 40.96 |
| 7xxx | 78.7 | 31 | 120 | 203 | 39.44 |
| 8xxx | 90.2 | 35.5 | 100 | 182 | 41.6 |
| 8.5xxx | 96.5 | 38 | 100 | 163 | 38.44 |
| 9xxx | 104.1 | 41 | 90 | 154 | 39.82 |
| 9.5xxx | 109.2 | 43 | 90 | 143 | 37.58 |
| 10xxx | 119.4 | 47 | 80 | 133 | 38.94 |
| 10.5xxx | 124.5 | 49 | 80 | 124 | 36.97 |
| 11xxx | 127.0 | 50 | 80 | 120 | 36 |
| 12xxx | 139.7 | 55 | 70 | 112 | 37.82 |
| 12.5xxx | 144.8 | 57 | 70 | 105 | 36.12 |
| 13xxx | 149.9 | 59 | 70 | 99 | 34.46 |
| 14xxx | 152.4 | 60 | 70 | 97 | 33.64 |
| 15xxx | 167.6 | 66 | 60 | 92 | 36.48 |
| 16xxx | 175.3 | 69 | 60 | 85 | 34.34 |
| 17xxx | 180.3 | 71 | 60 | 81 | 32.95 |
|
|

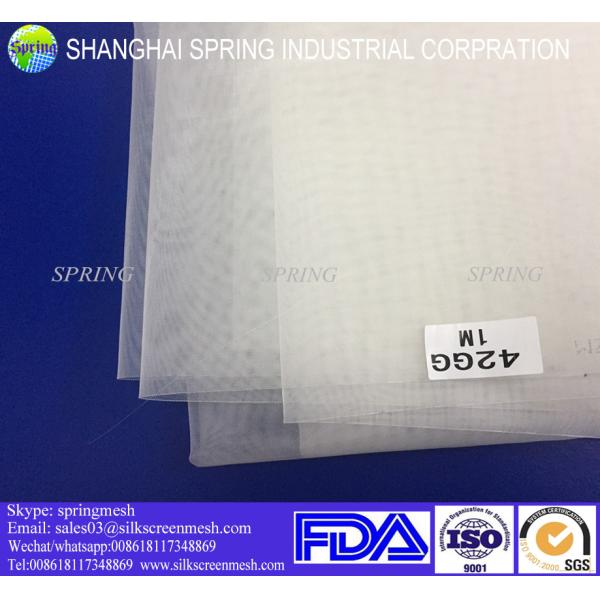

Light Weight Sifting Screen Mesh Smooth Surface Excellent Tear Resistance Images |
